| AP1A 1 - MAIN CHASSIS PLATE | AP15 1 - BRASS SPACER |
| AP3A 1 - 6-CELL BATTERY TRAY | AP 21 2 - AXLE CARRIERS |
| AP4A 1 - REAR BRACE | AP 22 1 - STEEL T-PLATE |
| AP5 1 - NERVE WING | 4526 1 - MOLDED T-PLATE SPACERS |
| AP6A 1 - SLOTTED BATTERY TRAY CONNECTOR | 4335 2 - PIVOT SOCKET |
| AP7A 1 - 4-CELL BATTERY CLAMP | 4336 2 - STEEL PIVOT BALL |
| AP 28 1 - .200 BATTERY TRAY SPACER | 13 - 4-40X3/8" FLAT HEAD BOLTS |
| AP9 2 - MID CHASSIS BRACE | 1 - 4-40X1/2" FLAT HEAD BOLTS |
| AP11 2 - .930 STAND OFF | 2 - 4-40X5/8" FLAT HEAD BOLTS |
| AP12 2 - .800 STAND OFF | 10 - 4-40X1/4" FLAT HEAD BOLTS |
| AP29 1 - CENTER SHOCK MOUNT STIFFENER BRACE | 4 - 6-36X1/2" FLAT HEAD BOLTS |
| AP18 1 - LEFT BULKHEAD | 1 - 4-40X3/8" BUTTON HEAD BOLTS |
| AP19 1 - RIGHT BULKHEAD | 8 - 4-40X1/4" BUTTON HEAD BOLTS |
| AP16 1 - TOP REAR POD PLATE | 4 - 4-40X5/8" BUTTON HEAD BOLTS |
| AP16 1 - TOP REAR POD PLATE | 8 - 2-56X5/16" BUTTON HEAD BOLTS |
| AP17 1 - BOTTOM REAR POD PLATE | 5 - #4 WASHERS |
| AP 24 1 - CENTER SHOCK MOUNT | 20 - #4-40 LOCK NUTS |
| AP 25 1 - CENTER SHOCK RIGHT SIDE | 2 - 4-40X1/2" SET SCREWS |
| AP26 1 - CENTER SHOCK LEFT SIDE | 2 - 4-40X3/8" SET SCREWS |
| AP16 1 - A.L.S. FRONT END KIT |

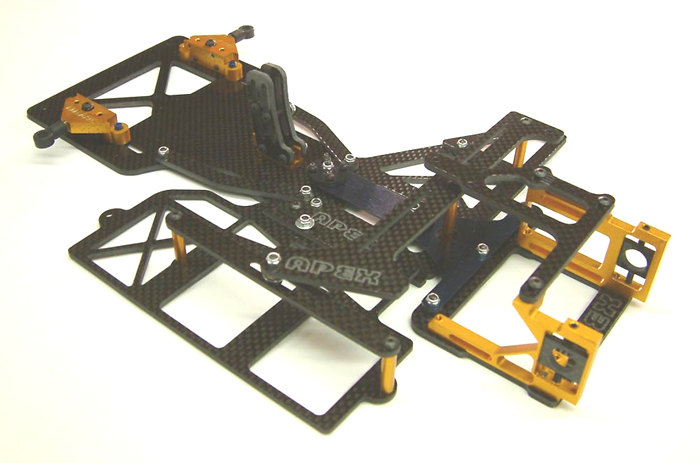

THE FIRST THING YOU WILL NOTICE IS THE SLOTTED FRONT END. THIS WILL ALLOW YOU TO FINE TUNE THE WHEELBASE FOR ANY TRACK LENGTH OR DRIVING STYLE.
THE BATTERY TRAY MOUNT IS SLOTTED SO YOU CAN FINE-TUNE YOUR CAR SETUP.
THE REAR CROSS-BRACE IS UNIQUE IN THAT IT BRACES THE WHOLE REAR OF THE CAR TO KEEP CHASSIS FLEX TO A MINIMUM.
TO KEEP YOUR BATTERY IN PLACE, THE BATTERY CLAMP MAKES IT EASIER TO INSTALL AND REMOVE YOUR BATTERY WITH ONLY TWO BOLTS. NO MORE TAPE.
MORE NEAT ITEMS ARE THE MID CHASSIS BRACES. THEY WILL KEEP THE CENTER OF THE CHASSIS FROM FLEXING.
NOTICE THE BATTERY TRAY IS SETUP FOR 4-CELL USE. BUT WITH A LITTLE CUTTING, THE TRAY CAN BE CONVERTED IN TO A 6-CELL BATTERY TRAY. YOU CAN MOUNT YOUR ELECTRONICS ON THE TRAY FOR MAXIMUM LEFT SIDE WEIGHT.
YOUR APEX ALSO COMES WITH AN ADJUSTABLE CENTER SHOCK MOUNT, A.L.S. (ADJUSTABLE LOWER FRONT A-ARM KIT), REDESIGNED STEEL T-PLATE, AND ONE OF THE MOST ADJUSTABLE REAR PODS ON THE MARKET TO DATE.
WE HOPE THAT THE APEX WILL NOT ONLY HELP YOU GET CLOSER TO THE WINNERS CIRCLE, BUT HELP YOU HAVE MORE FUN GETTING THERE.
